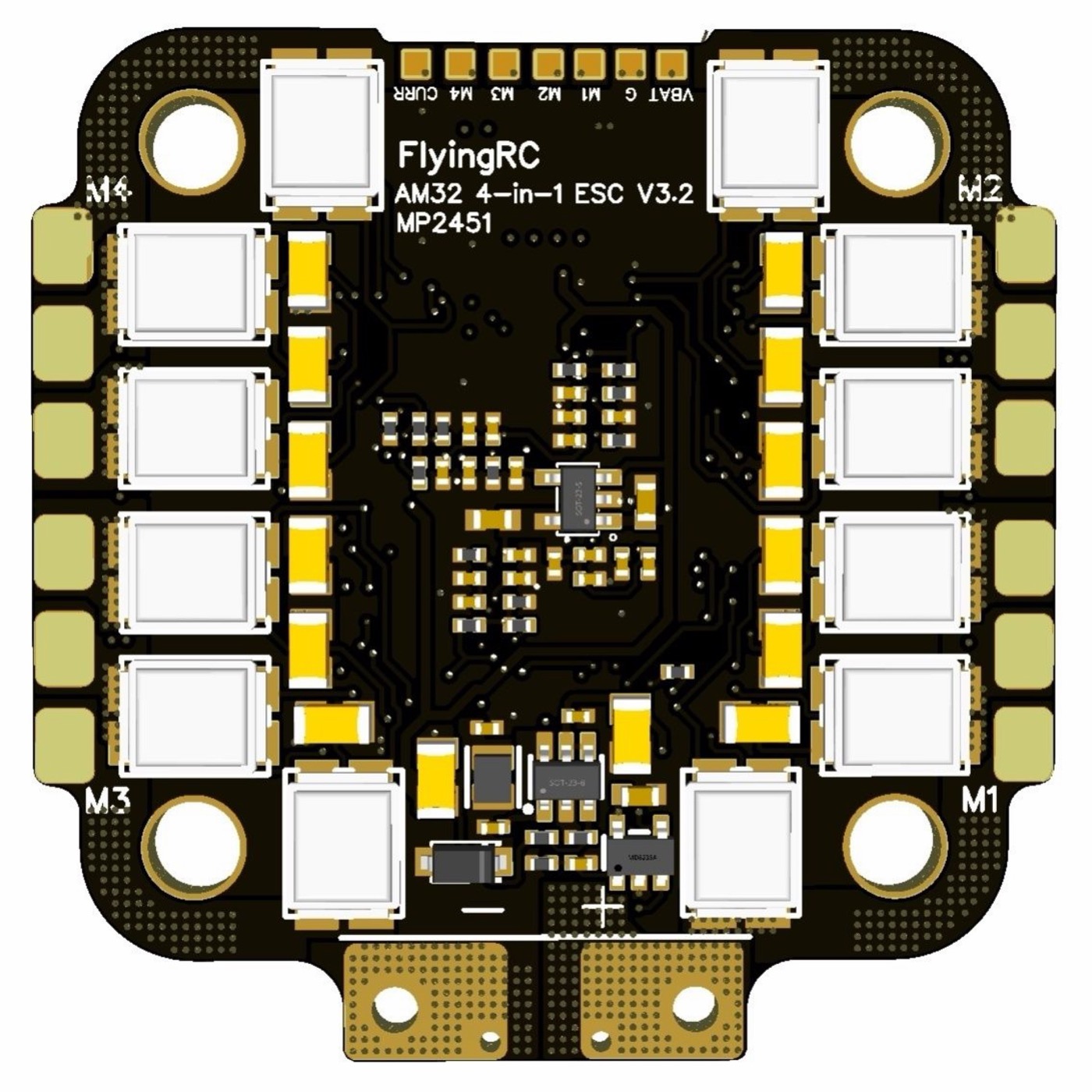

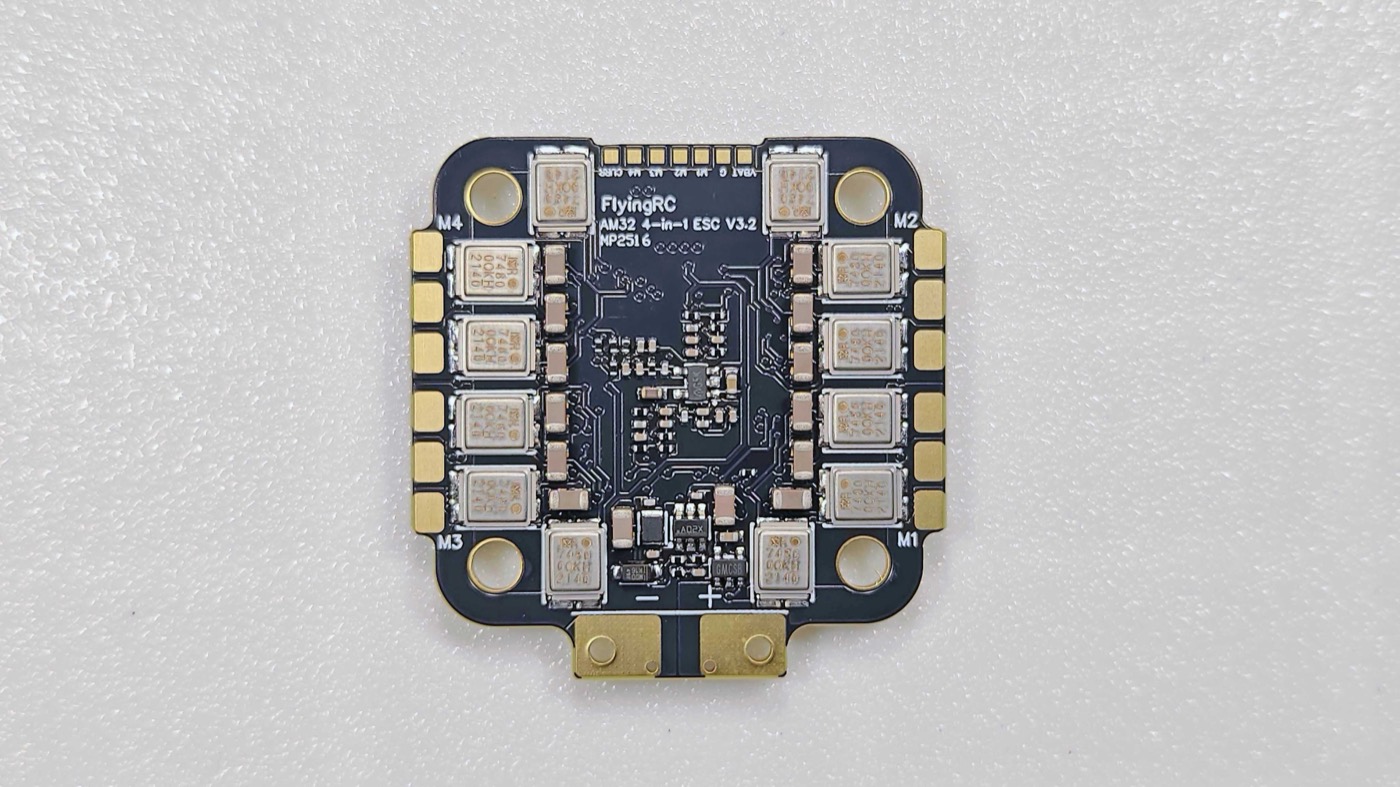

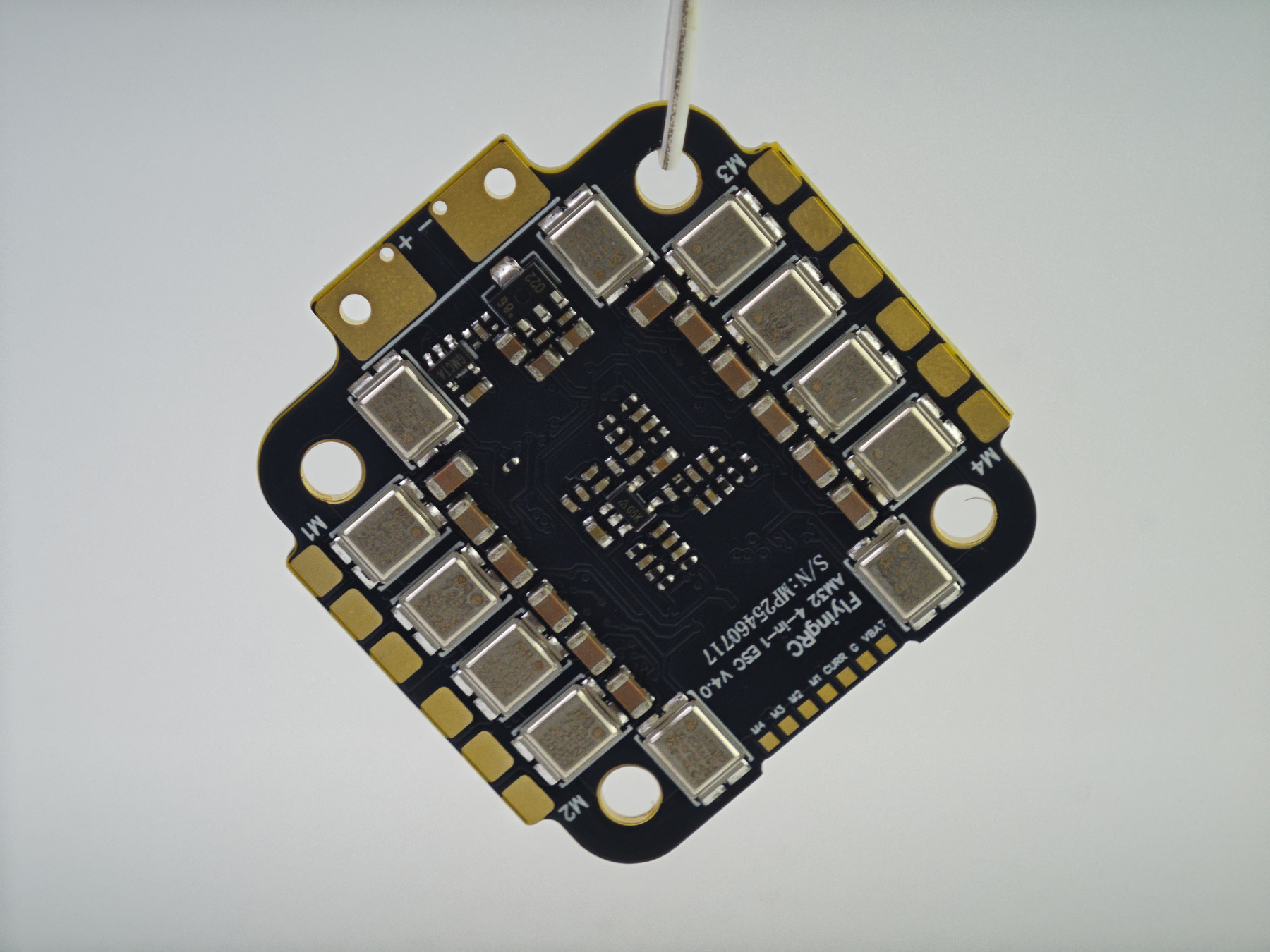

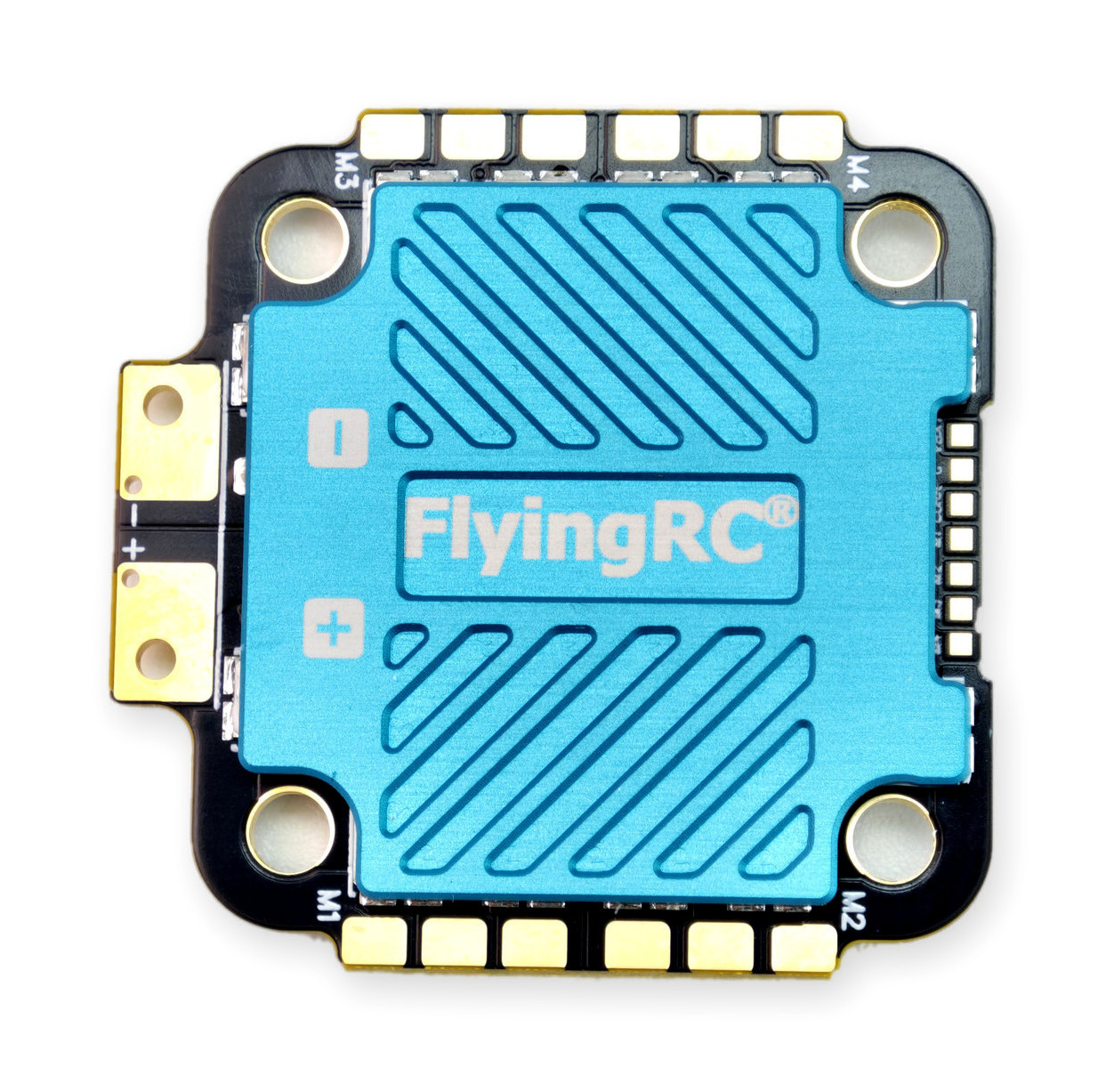

FlyingRC 4IN1 75A ESC FPV Metal-sealed ESC
A four-in-one ESC for FPV drones. It takes one battery input and independently drives four brushless motors from flight-controller throttle signals.
Best used for
- High-current FPV builds needing a 75 A x 4 ESC.
- 5-inch to larger FPV builds where thermal and current margin matter.
- AM32 users who want configurable open-source ESC firmware.

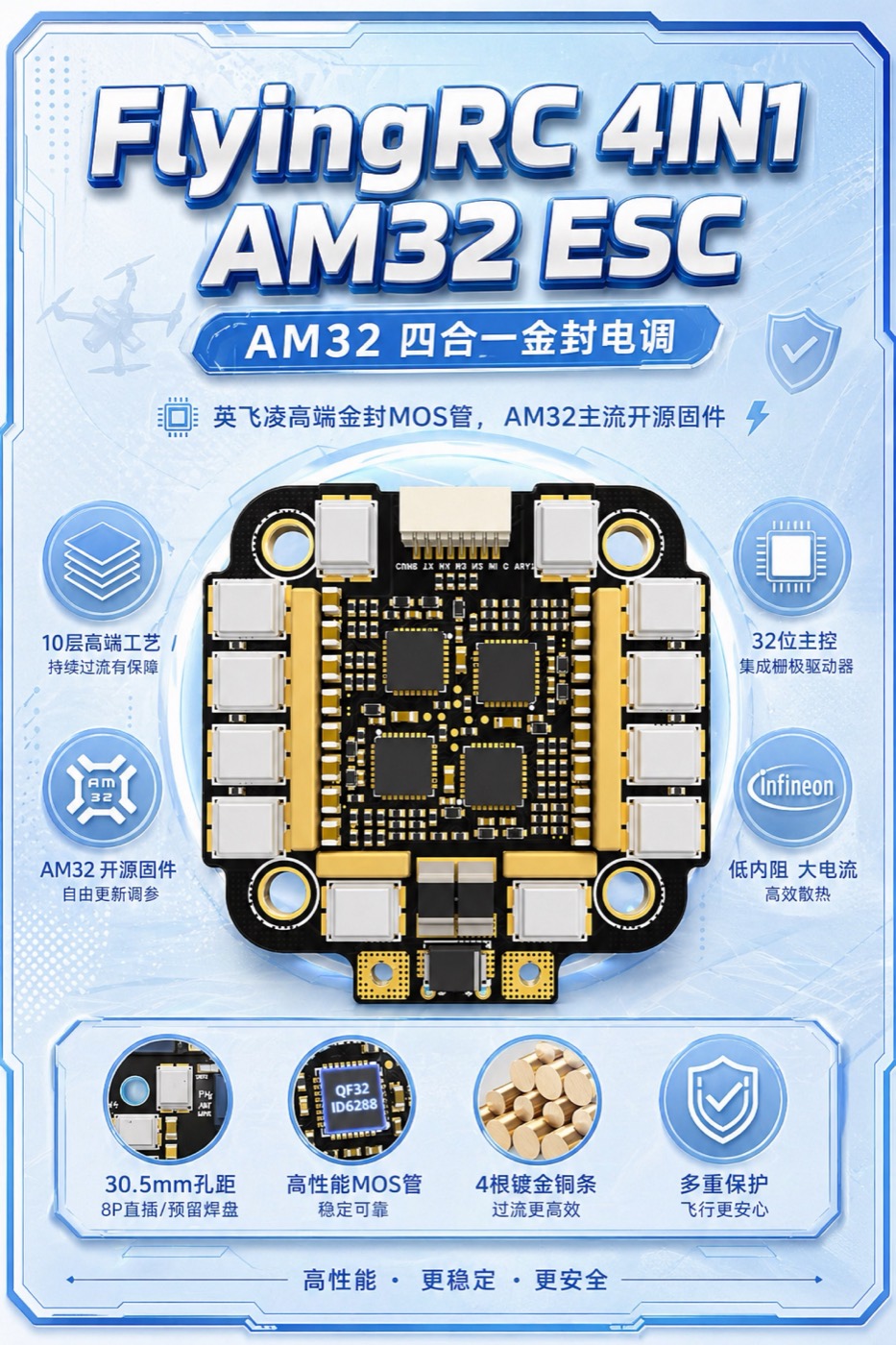

Key features
- QF32F4AK8U7 32-bit MCU with ID6288 gate driver.
- Infineon IRF7480 gold-packaged MOSFETs.
- 10-layer 2 oz PCB with copper strip current assistance.
- Pre-flashed with AM32 firmware.
Setup / wiring notes
- Remove propellers before ESC parameter tuning or firmware flashing.
- Power the ESC with a LiPo battery when tuning/flashing, following the ESC manual.
- Use the offline AM32 parameter tuning workflow; the manuals warn against web-based firmware flashing.
Check before use
- Incorrect firmware flashing can damage the ESC MCU; use the manual workflow.

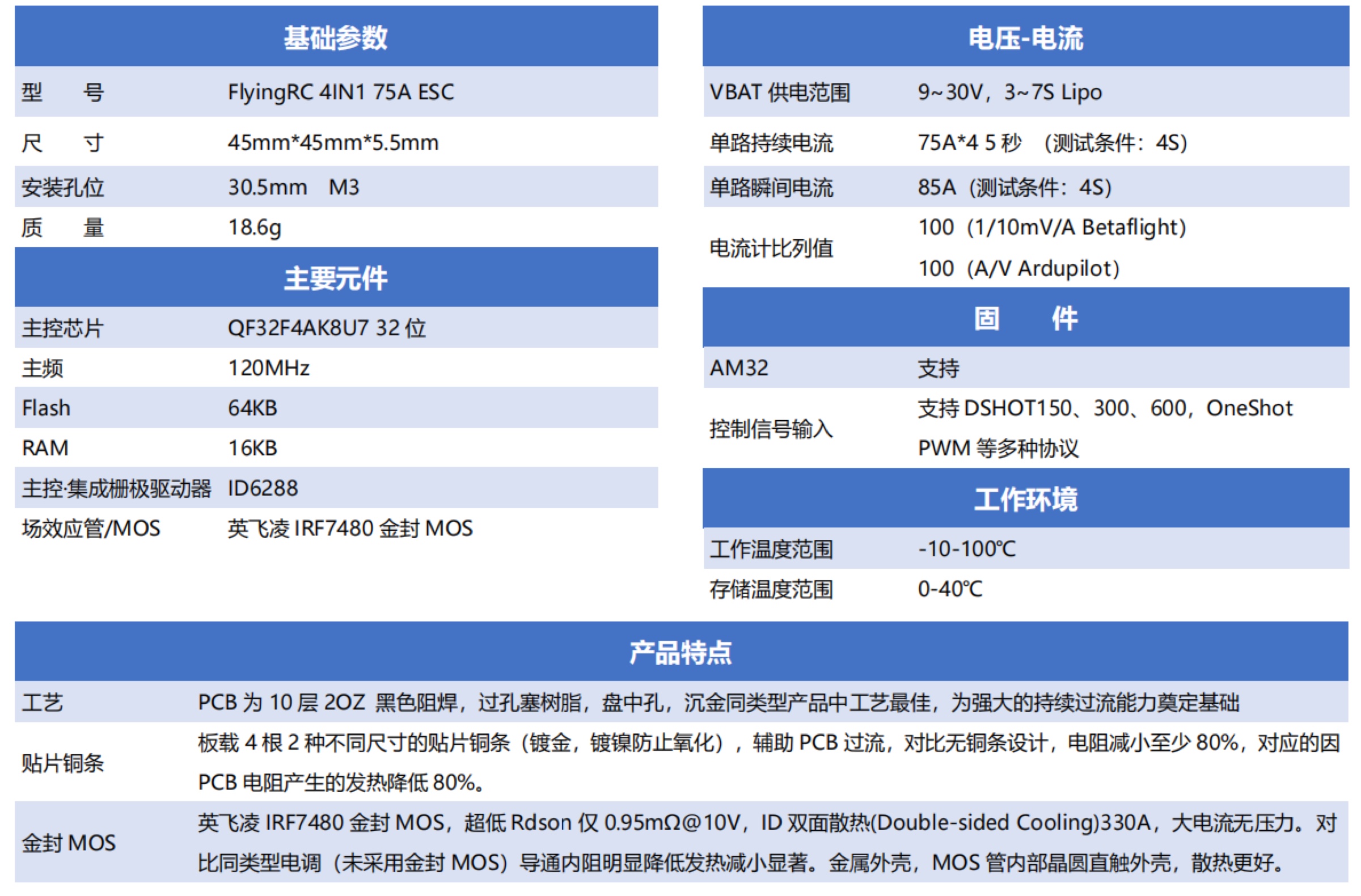

Key specs
- AM32 4-in-1 FPV ESC
- 75 A per channel continuous rating under manual test conditions
- 9-30 V / 3-7S LiPo input range
Downloads

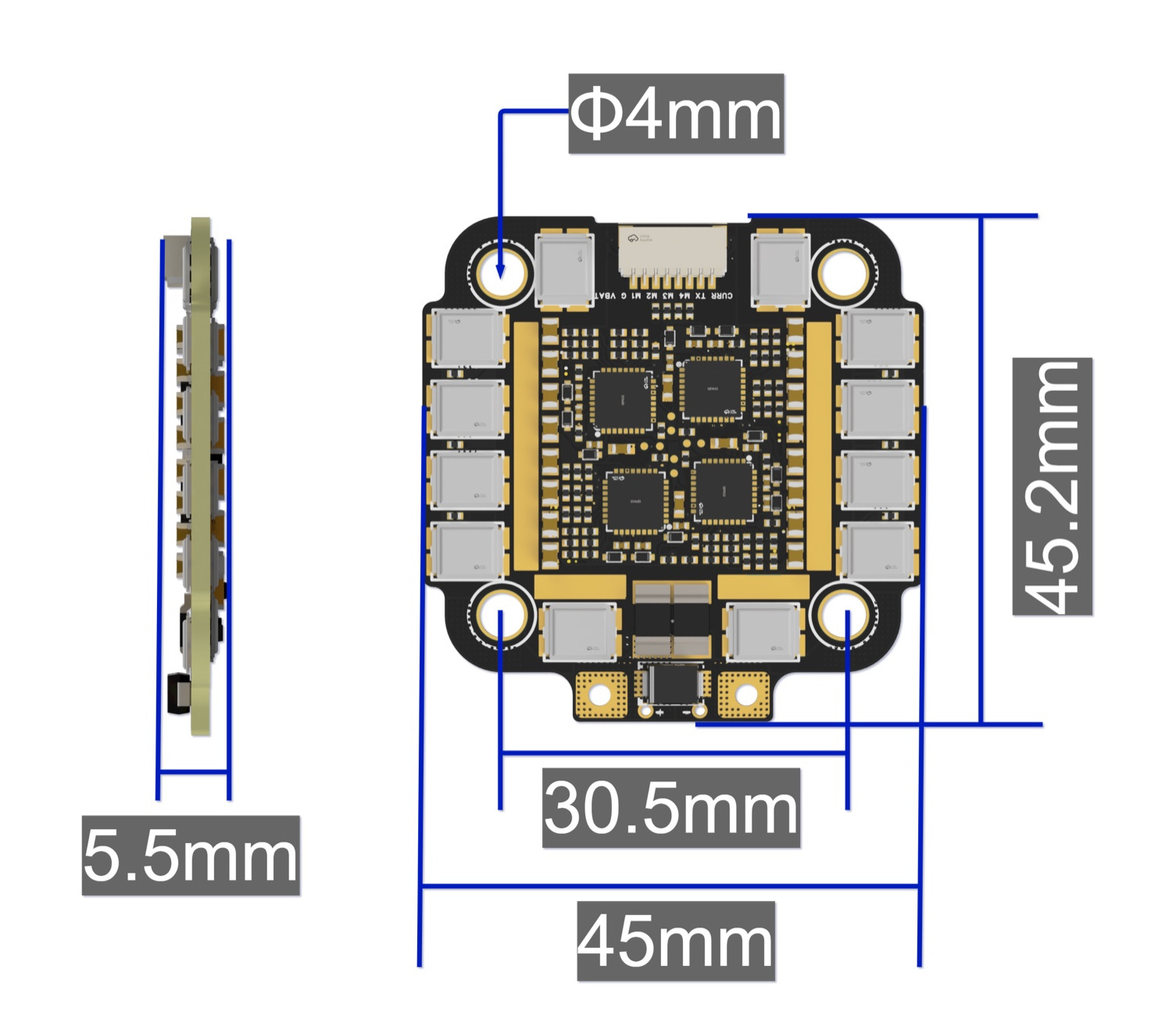

Wiring / dimensions / specs

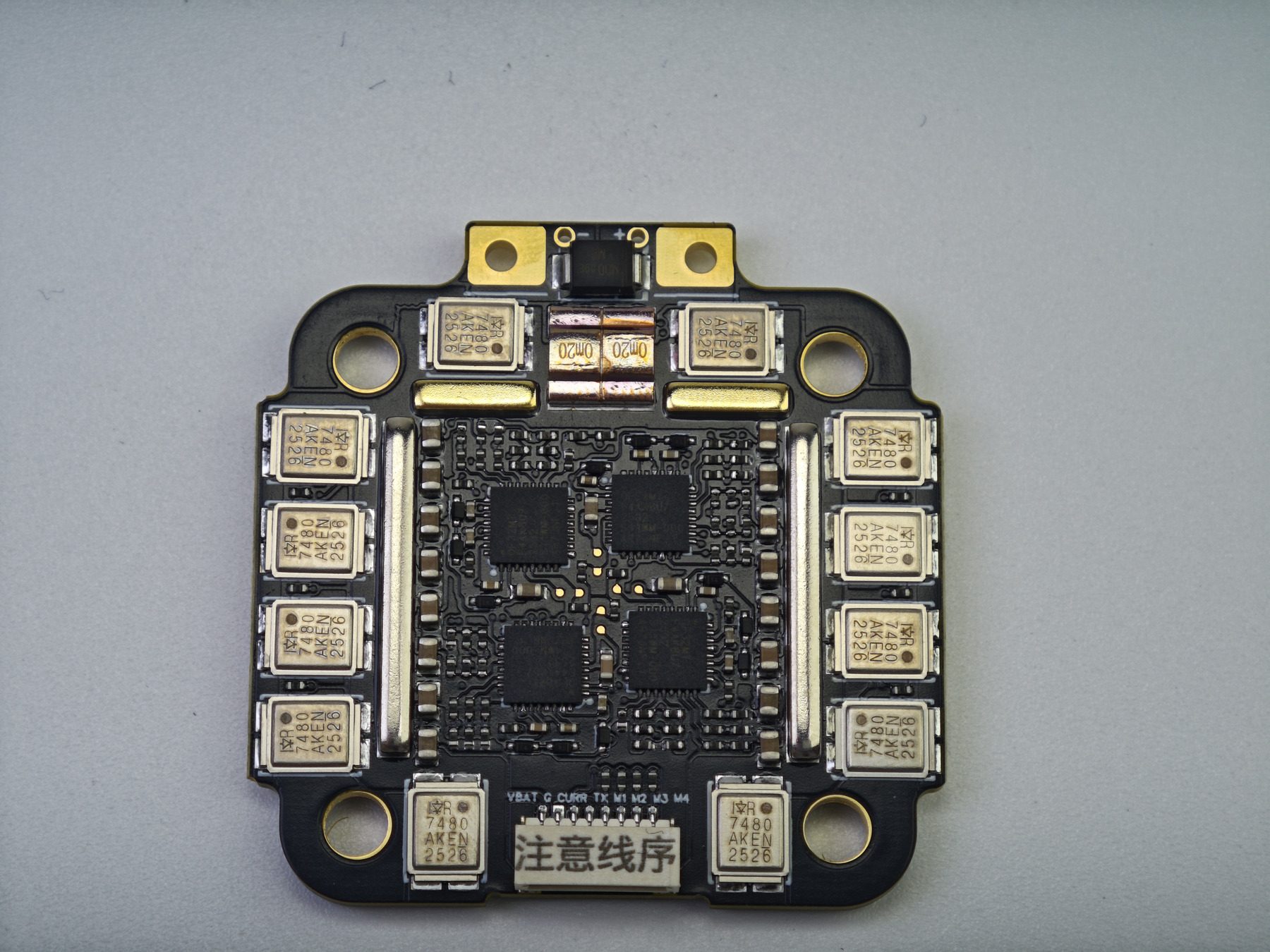

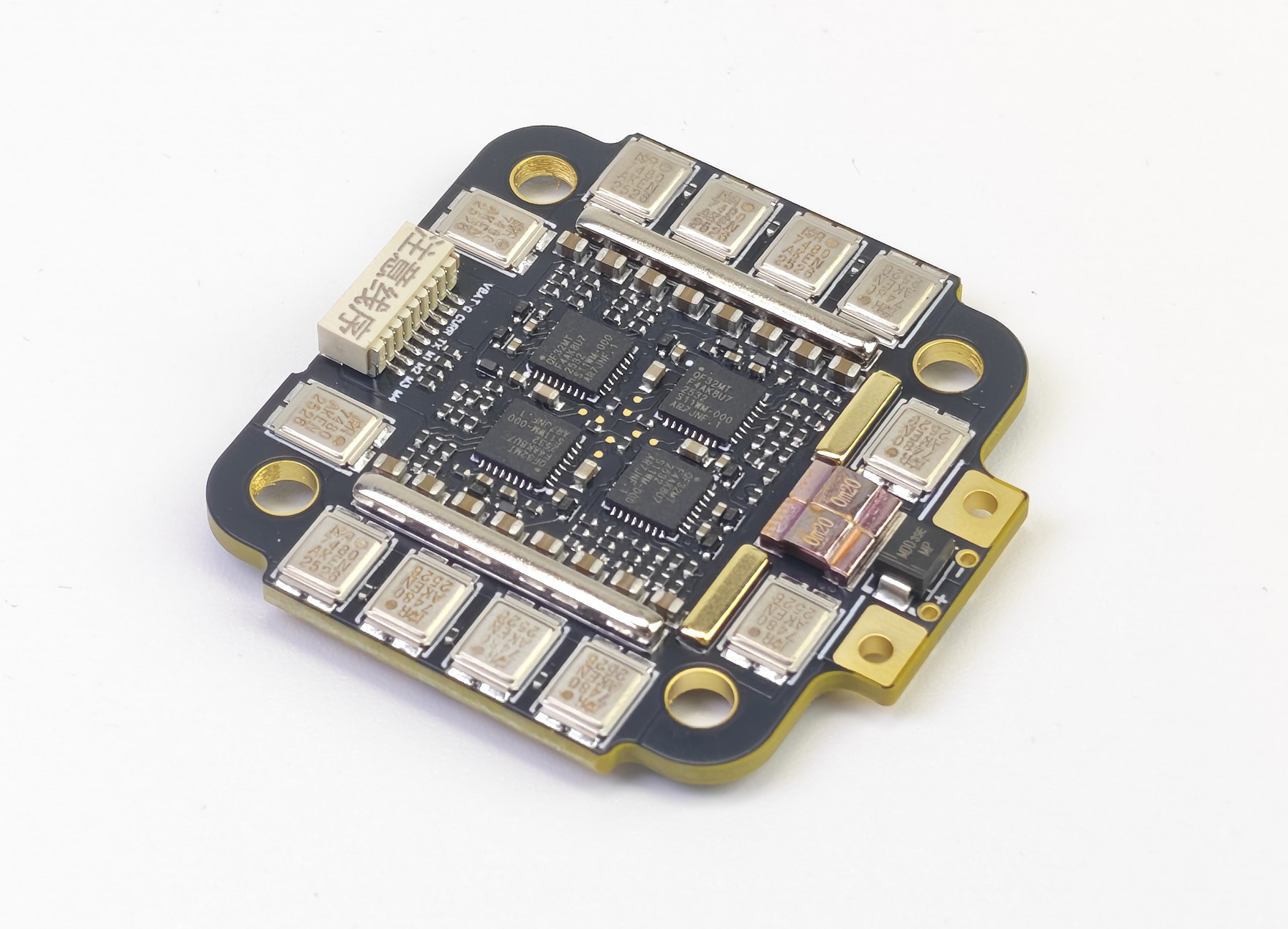

Product gallery
