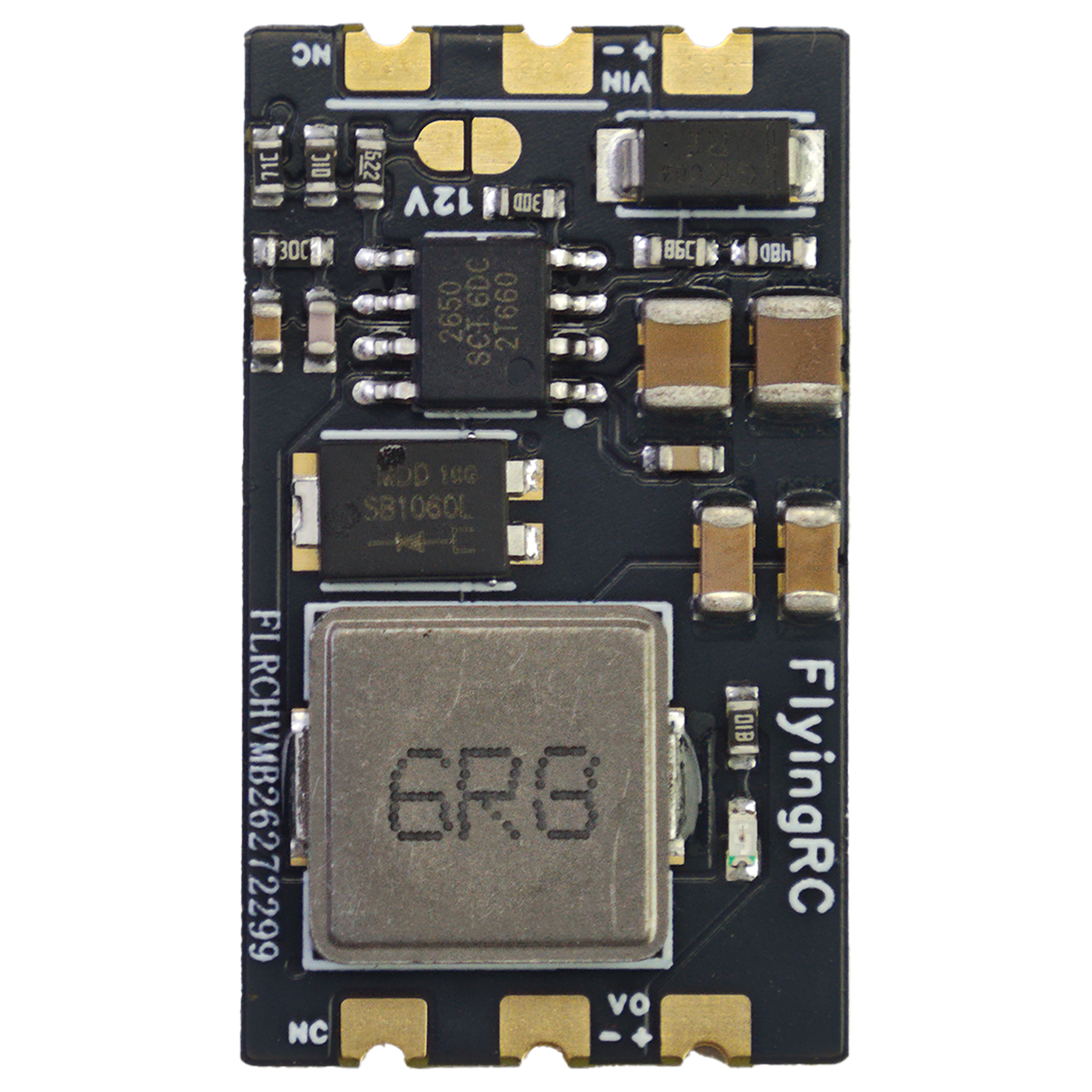

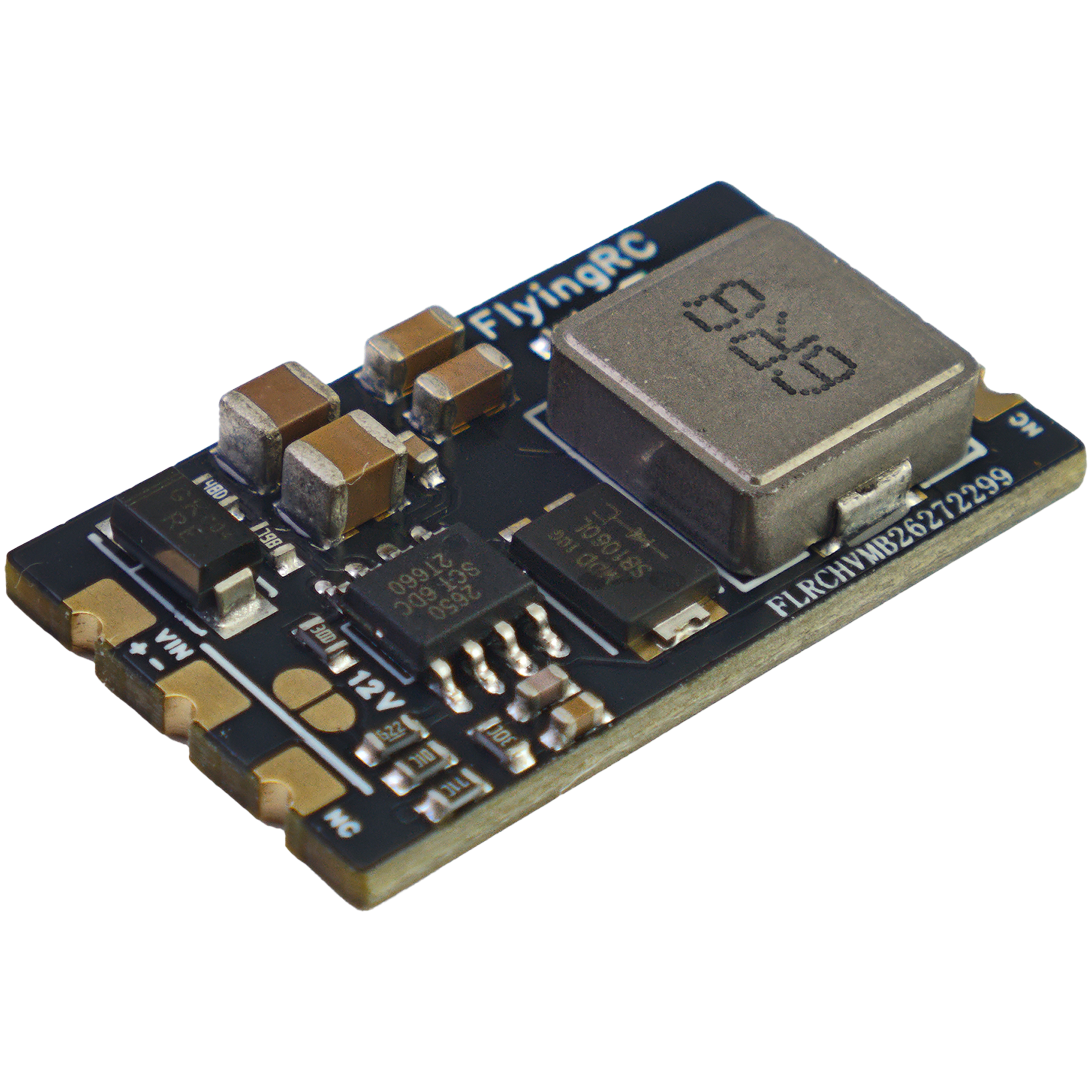

FlyingRC 5A 12S BEC V1 Step-down Module
A compact high-voltage BEC for 2-12S builds, with 5 V output by default and a 12 V jumper option.
Key features
- Accepts 6-60 V input.

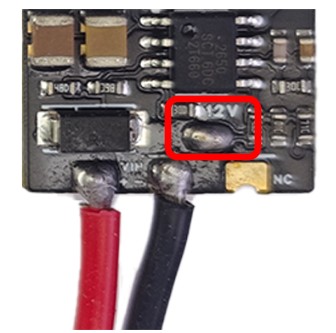

- Default 5 V output; jumper-selectable 12 V output.

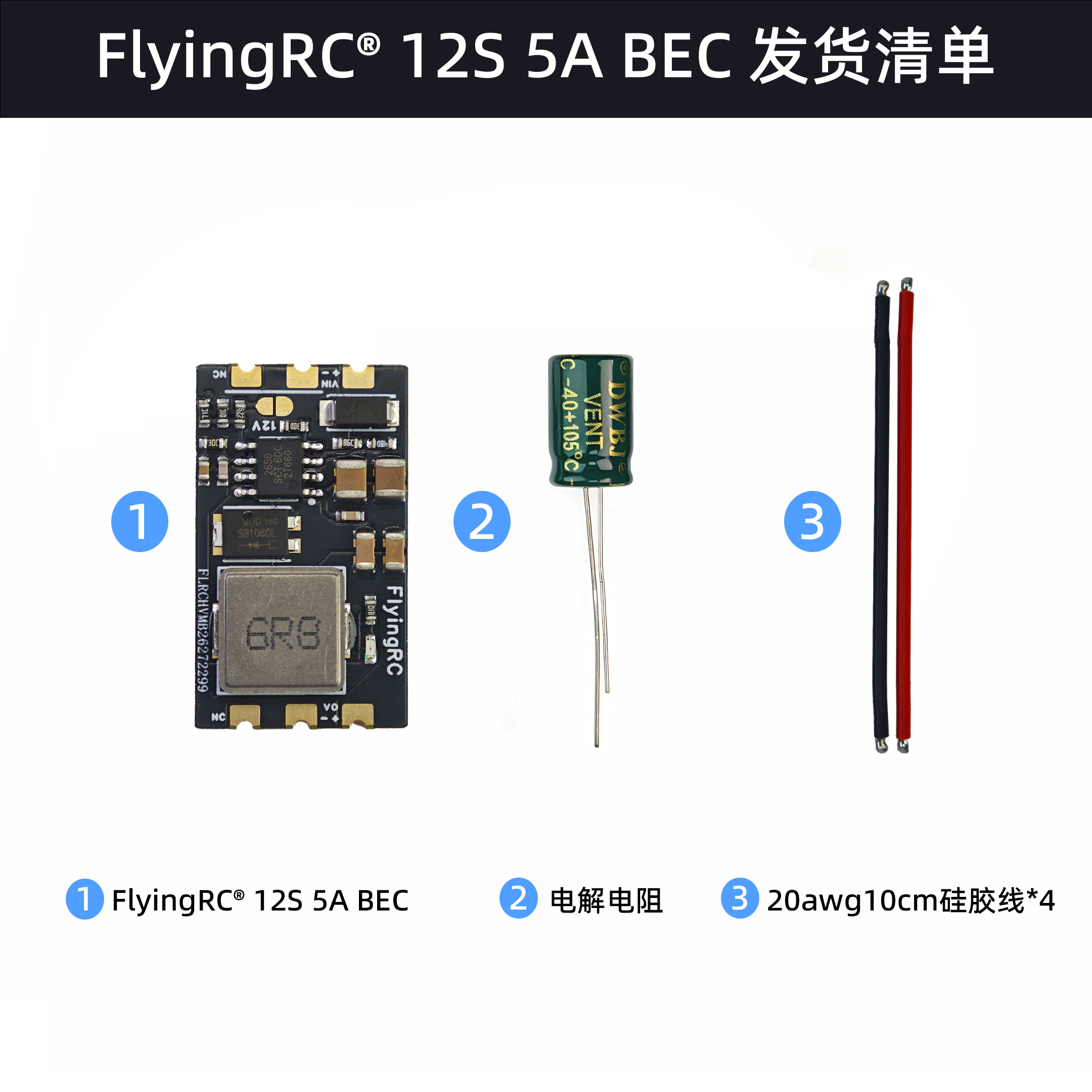

- Supplied with a 35 V 220 uF electrolytic capacitor.
Setup / wiring notes

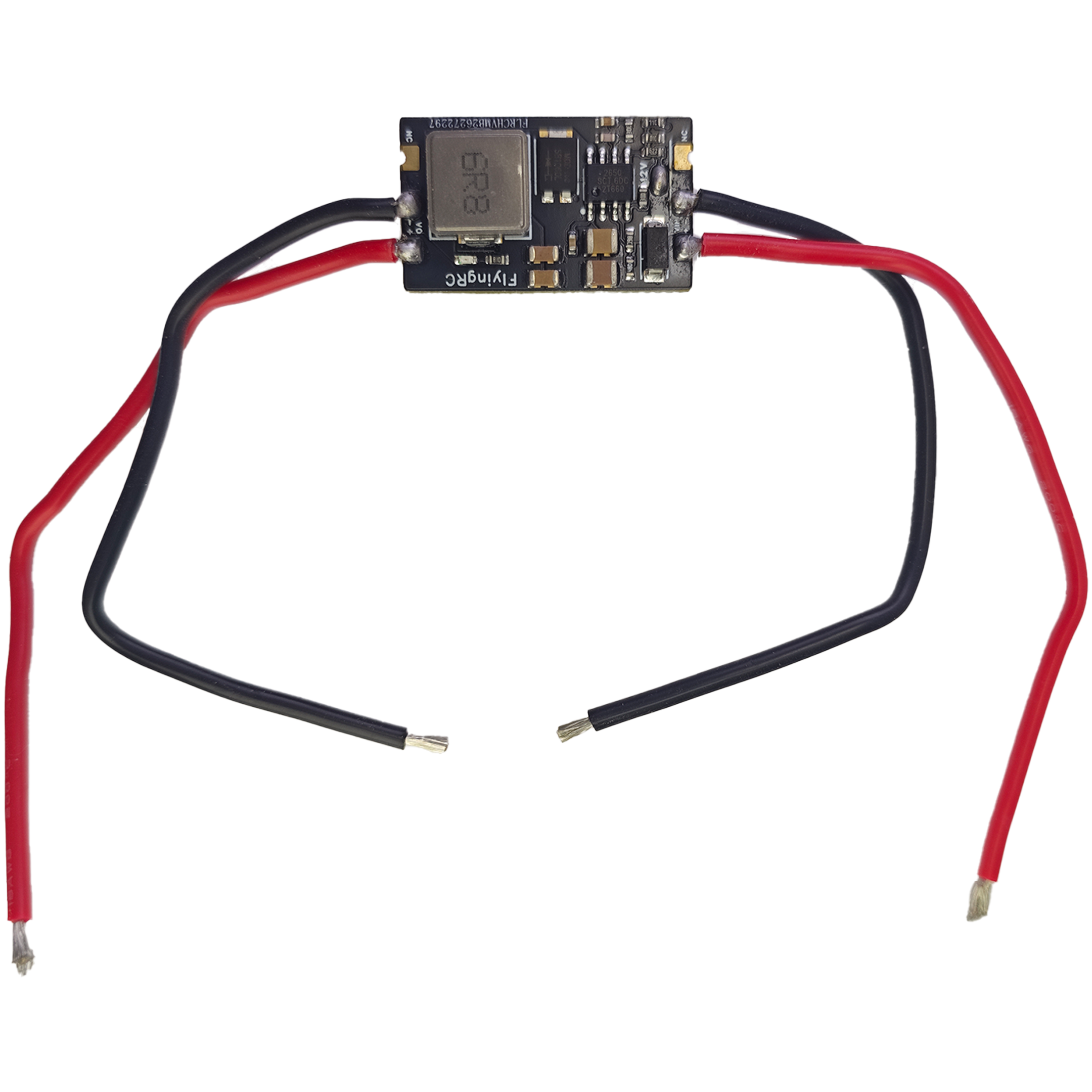

- Connect VIN to the battery and VO to the load, with the capacitor installed on the load side.
Check before use
- Select the output jumper before connecting sensitive equipment.
Key specs
- 6-60 V input; 2-12S LiPo
- 5 V default output; 12 V selectable by jumper
- 5 A continuous at 5 V with 6S input; 3.5 A at 5 V with 12S input

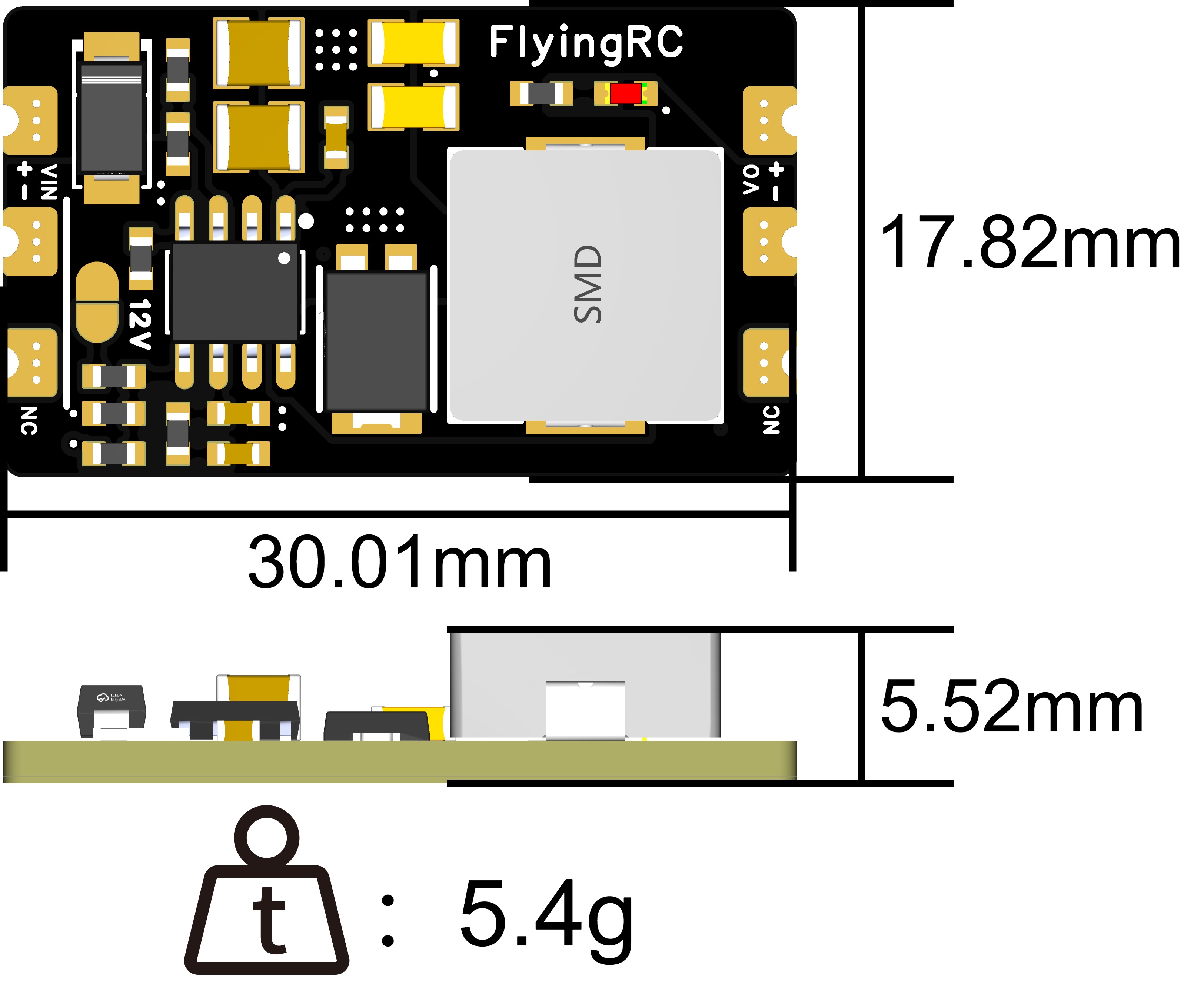

- 30.01 x 17.82 x 5.52 mm; 5.4 g without capacitor
Downloads
Wiring / dimensions / specs
