FlyingRC H7Wlite MK1 H743 Fixed-wing Flight Controller
A higher-performance fixed-wing flight controller page for users choosing an H7-class board for more processing headroom and richer peripheral integration.
Best used for
- Larger or more capable fixed-wing builds than the ultra-mini F4Wing class.
- ArduPilot fixed-wing users who want H7-class performance.
- Builds that need CAN/GPS/peripheral expansion planning.
Key features
- H743-class fixed-wing positioning.

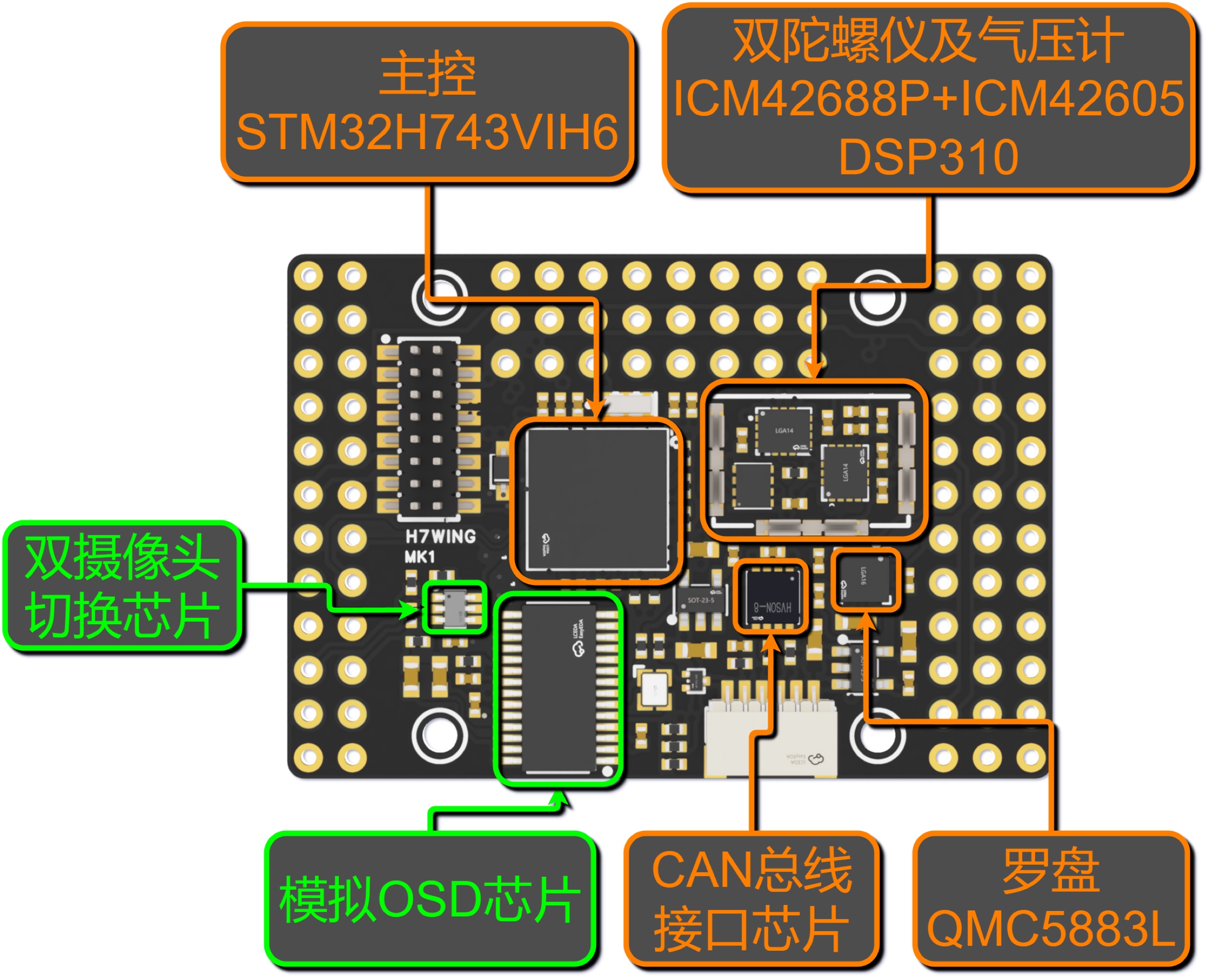

- Public assets include layout, dimension, battery wiring, and product render references.
- Works as the high-end fixed-wing controller family entry in this wiki.
Setup / wiring notes

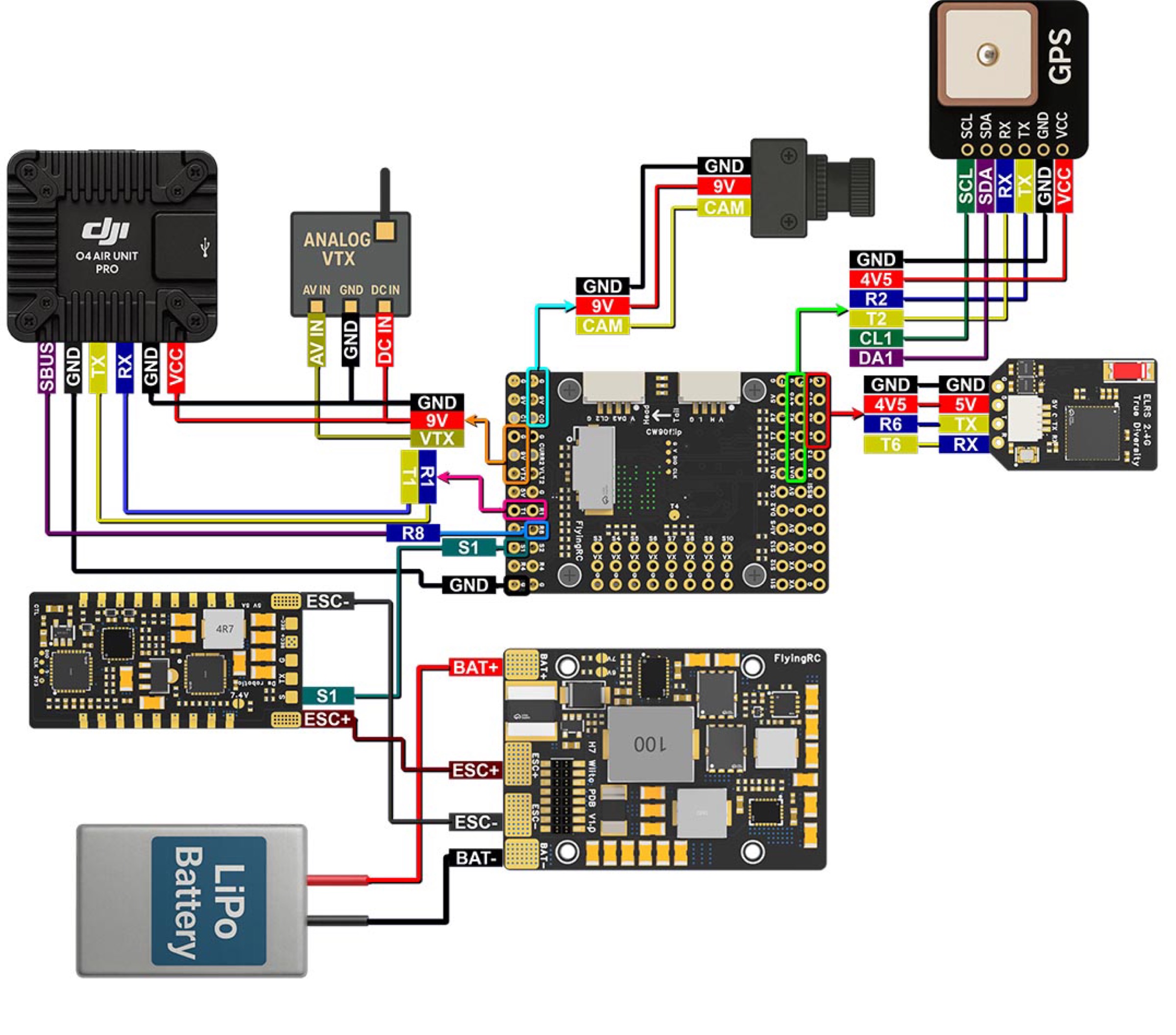

- Treat this as a fixed-wing autopilot board: verify power input, GPS/compass, receiver, telemetry, and servo outputs before powering the full airframe.
Check before use

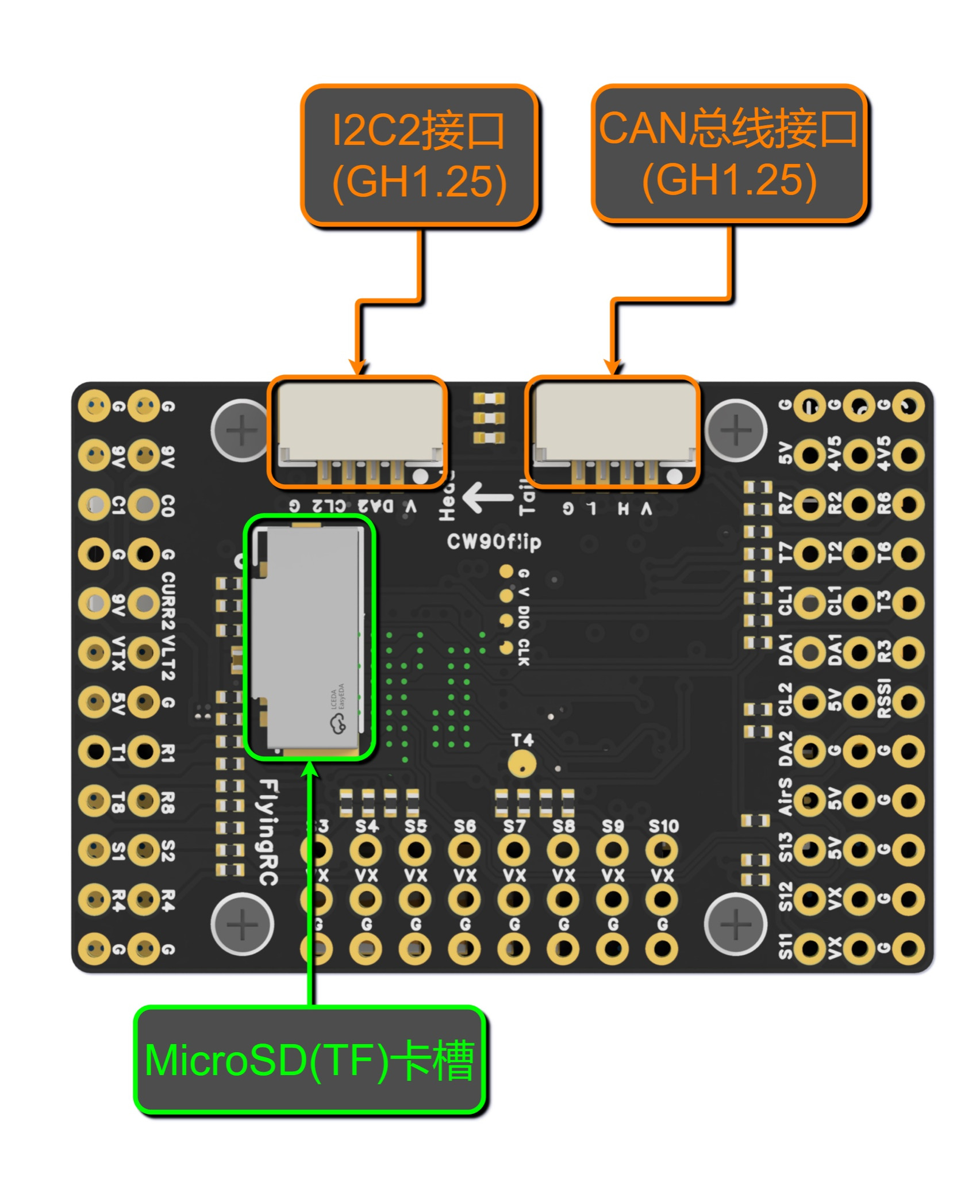

- Exact connector pinout should be taken from the layout image/manual before wiring.

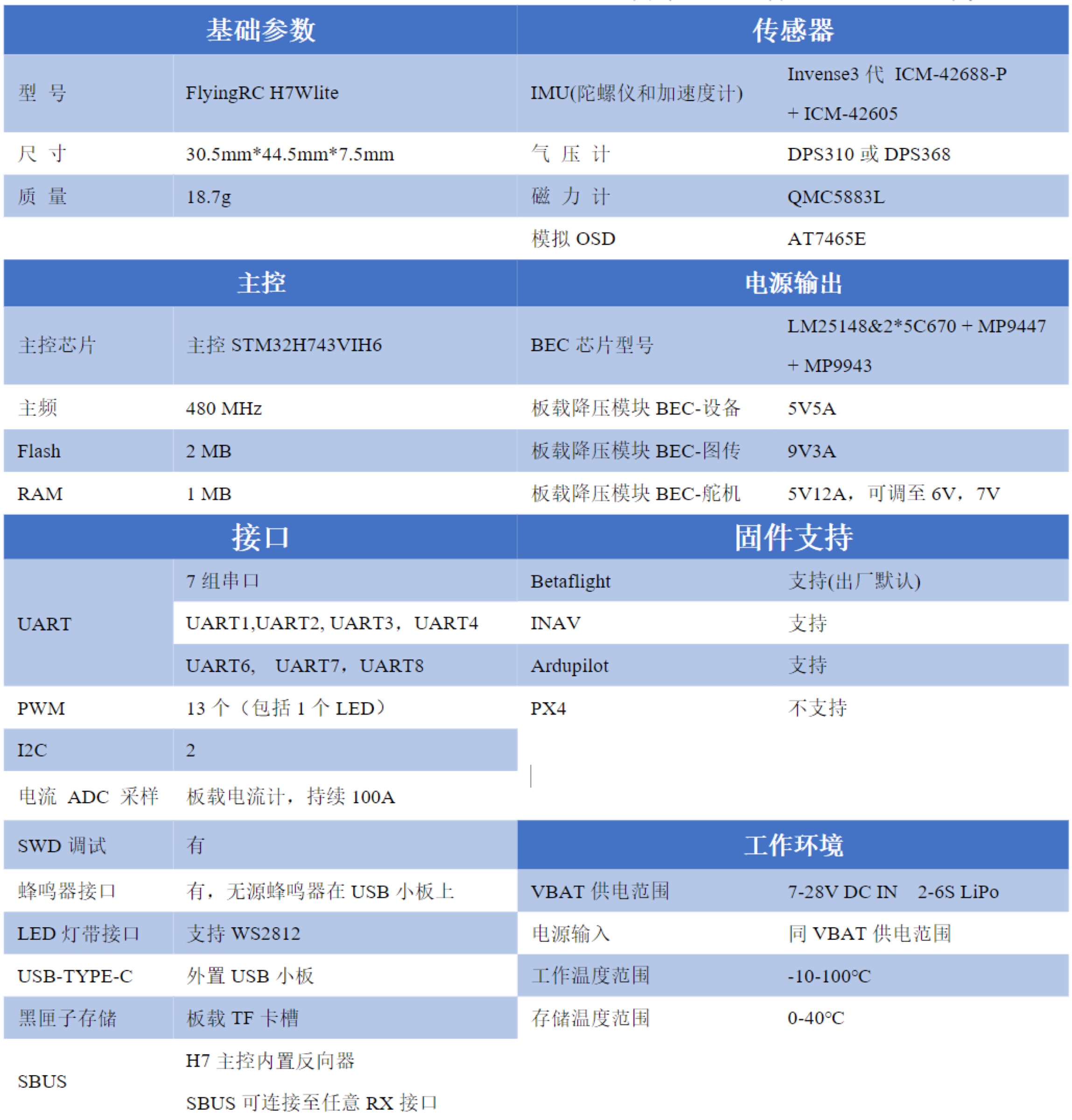

Key specs
- H743-class fixed-wing autopilot controller
- Supports CAN/GPS/peripheral expansion planning

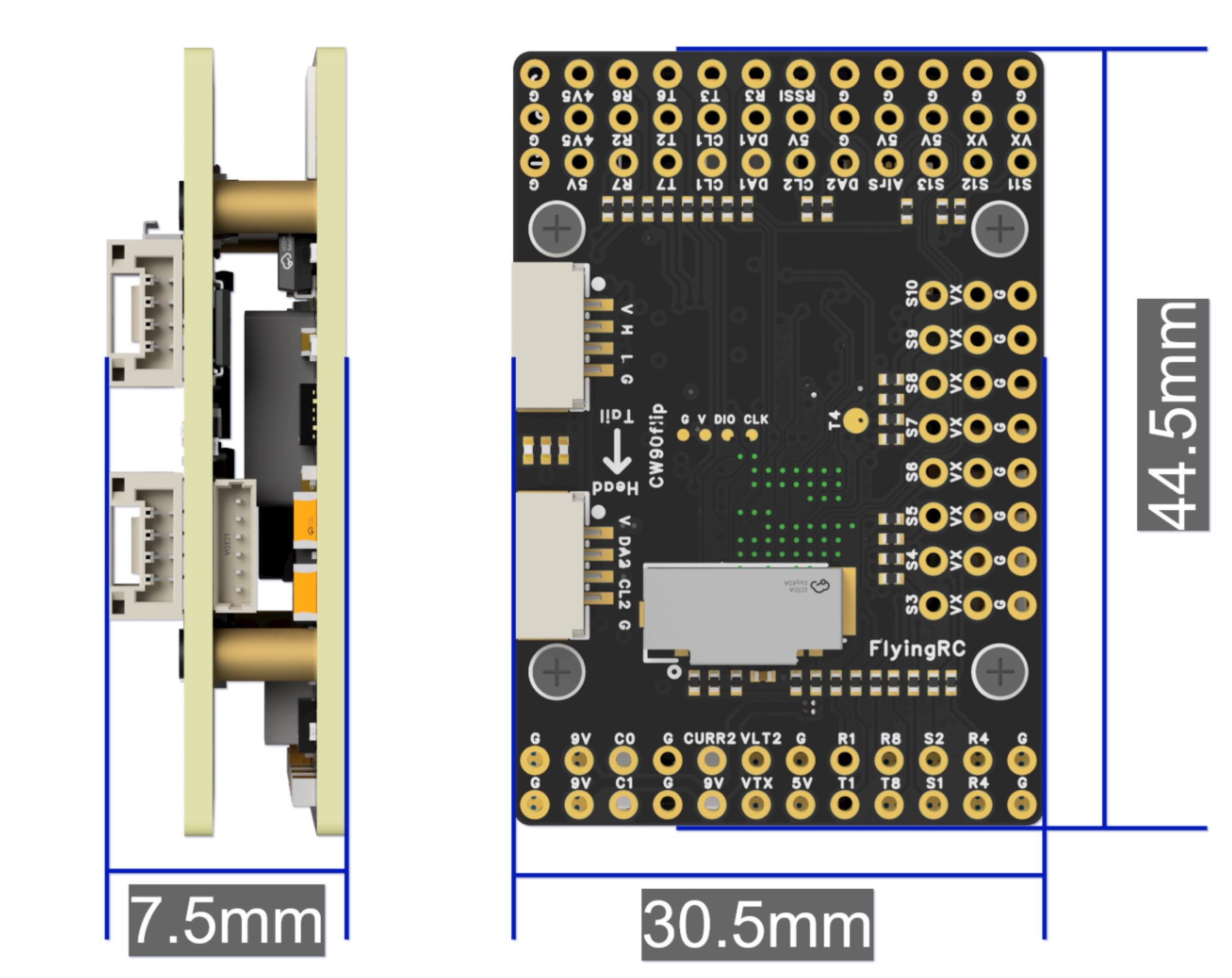

- Includes dimension and battery wiring references
Downloads
Reference files
Wiring / dimensions / specs

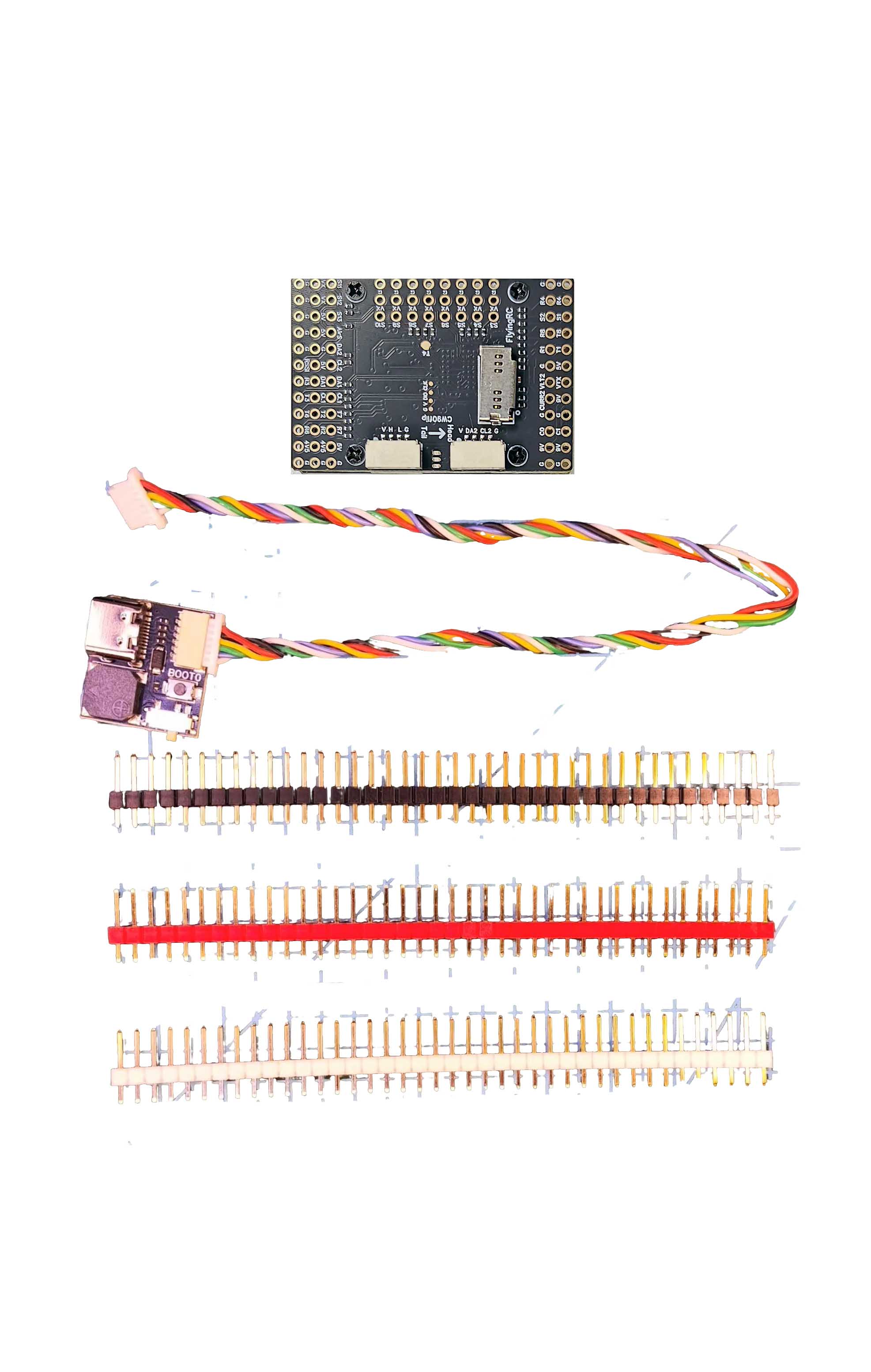

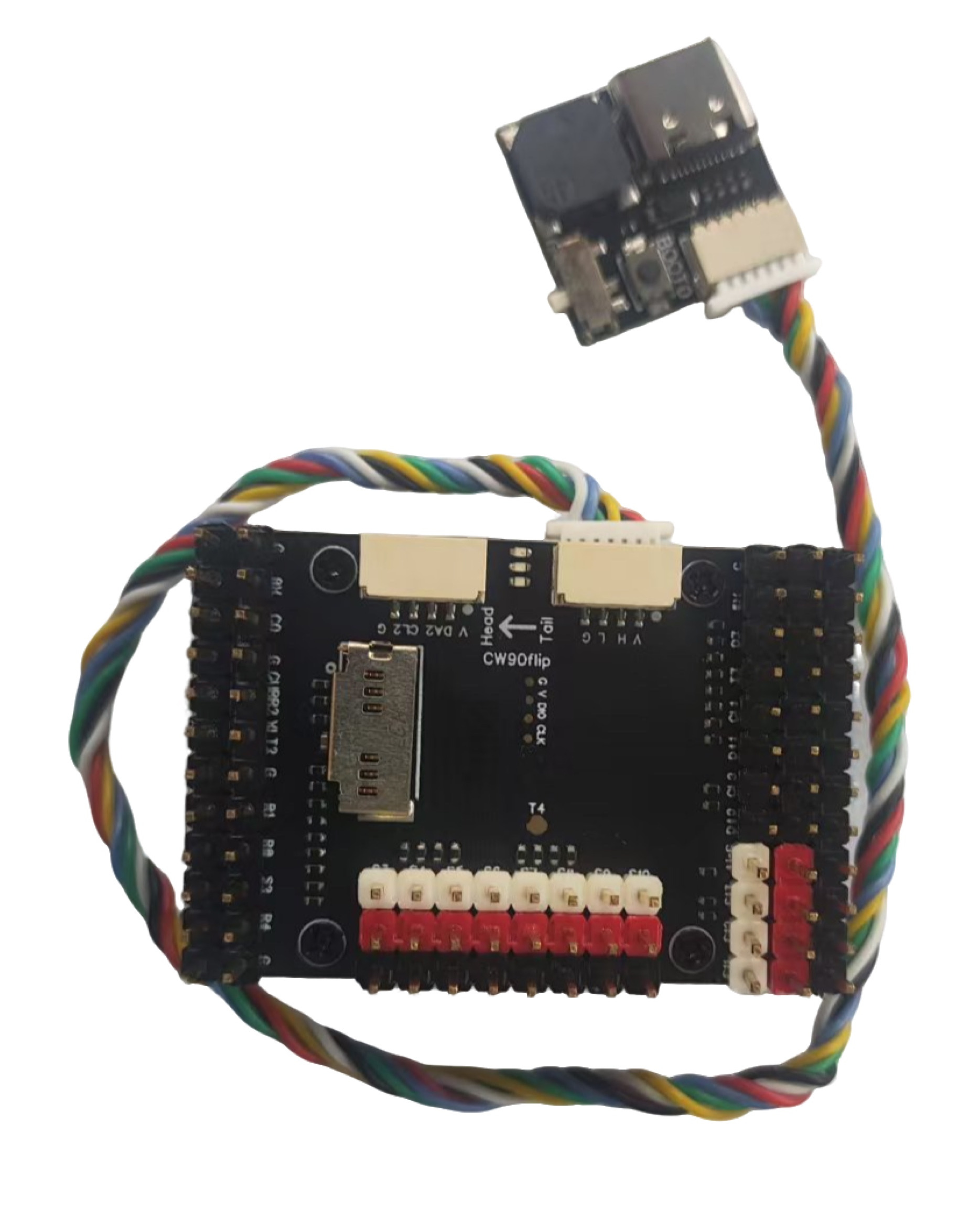

Product gallery
